65Mn Flexible Shaft for Submersible Pump with construction Machinery Tools

Name: 65Mn Flexible Shaft for Submersible Pump with construction Machinery Tools
Brand: YONGTUO
Price: 0.50 USD

Quality 65Mn Flexible Shaft for Submersible Pump with construction Machinery Tools wholesale

Place of Origin : Ningbo,China

Brand Name : YONGTUO

Certification : CE,SGS

Model Number : ZN series

MOQ : 10 pcs

Price : $0.50 per pc

Packaging Details : carton or up to the customers

Delivery Time : about 3 days

Payment Terms : TT or LC, D/A, D/P, Western Union, MoneyGram

Supply Ability : 20000 pcs/month

material : Rubber

Poker size : 25mm,35mm,28mm,32mm,45mm,40mm,50mm,60mm

Flexible shaft dia : 10mm,13mm

Rubber hose dia : 28mm,30mm

Length : 1-12m

Contact Now

65Mn Flexible Shaft for Submersible Pump with construction Machinery Tools

Description: flexible shaft ,concrete vibrator shaft

Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant
Technical Parameters

It was made of rubber, stee-wier net, canvas, lining spring.
Flexible rubber hoses are extensive used to the flexible tansmission of various machinery, such as the vibrator equipment, garden machine, water pump and other mechanical products. Can be used for all the non-linear motion machine.
It was made of rubber, stee-wier net, canvas, lining spring.

Model	Outer.dia	Inner.dia	Rubber tensile	Adhensive of inner rubber	Steel belt material	Steel belt hardness	Rubber hardness	Steel wire braid	Min.bending radius(mm)
JYG16	16mm	9mm	>1000 N/	50-60 N/	40Mn-65Mn	20HRC-30HRC	50-62	1	75
JYG20	20mm	10mm						1	80
JYG22	22mm	10mm						2	80
JYG24	24mm	13mm		60-65	20Mn-65Mn		75-80	according to the demand	100
JYG30	30mm	16mm							120
JYG32	32mm	18mm							150
JYG36	36mm	20mm							200
JYG42	42mm	25mm							250

Diameter (mm)	Tolerance (mm)	Number of Layers	Loading Moment (N · m) (Sample 500mm Long)	Weight (kg/ 100m)
2.0	+0.02 -0.02	3/5	0.8	1.8
2.5		3/5	1.0	2.8
3.2		3/5	1.3	4.6
3.8		3/5	1.5	6.5
5.0	+0.00 -0.05	3/4/5	1.8	11.3
6.0		3/4/5	2.4	16.2
6.5		4/5/7	2.9	18.7
8.0		4/5/6/7	7.5	28.8
10		4/5/6/7	22.5	45.5
12		4/5/6/7	39.0	66.5
13		4/5/6/7	50.5	77.5
16		4/5/6/7	115.0	114
18		4/5/6/7	160	145
The flexible shafts not listed in the chart can be customized

Welcome to visit factory warmly. can send samples for testing in advance.
can supply OEM service with your own logo.
Supply high quality & the most competitive price for you.

You may interested in other products: concrete vibrator,mini concrete mixer

Contact Us
Sales manager:Jessica
E-mail:sales@en-machinery.com
Skype: swhome79
www.en-machinery.com
Tel:0086.574.88124576
Wechat:+86 138 5786 8709

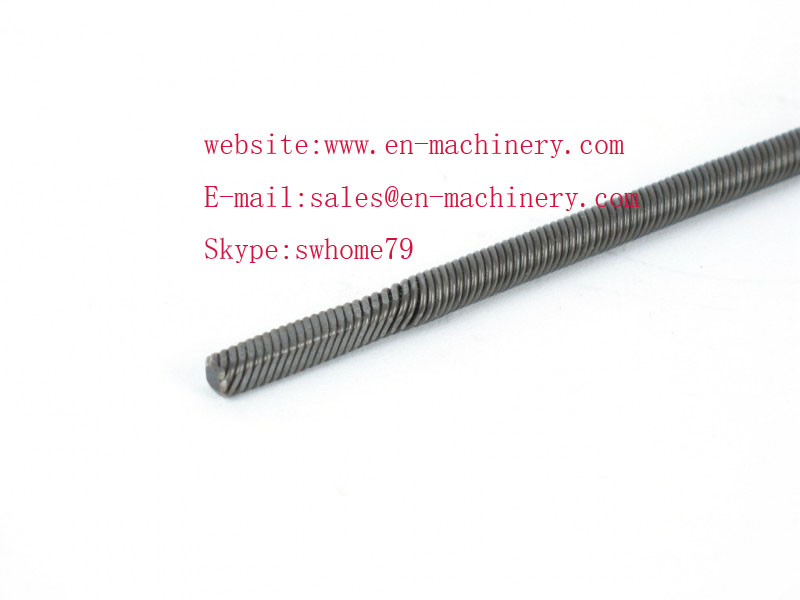

65Mn Flexible Shaft for Submersible Pump with construction Machinery Tools Images
